The BAT54SDW-7-F is a Schottky barrier diode manufactured by Diodes Incorporated, designed for various applications in electronic circuits. Here’s a detailed description of its features and specifications:

General Description:

The BAT54SDW-7-F is a dual Schottky diode housed in a compact SOT-23 package. It is specifically designed for low voltage and high-speed switching applications, making it suitable for use in RF applications, signal detection, and rectification in power supplies.

Key Features:

1. Dual Diode Configuration: The device contains two diodes in a single package, allowing for space-saving designs in circuit layouts.
2. Low Forward Voltage Drop: The BAT54SDW-7-F exhibits a low forward voltage drop (typically around 0.3V at 1mA), which enhances efficiency in power-sensitive applications.
3. High-Speed Switching: The Schottky design enables fast switching speeds, making it ideal for high-frequency applications.
4. Reverse Voltage Rating: The maximum reverse voltage (V_R) is typically rated at 30V, allowing it to handle a variety of voltage levels in different applications.
5. Low Leakage Current: The device features low reverse leakage current, which is crucial for battery-operated devices and helps in maintaining energy efficiency.
6. Temperature Range: The operating temperature range is typically from -55°C to +125°C, making it suitable for a wide range of environmental conditions.

Electrical Characteristics:

• Forward Current (I_F): The maximum forward current is typically rated at 200mA.
• Reverse Recovery Time (t_rr): The reverse recovery time is very short, which is a significant advantage in high-speed applications.
• Capacitance: The junction capacitance is low, which contributes to the diode's high-speed performance.

Package Information:

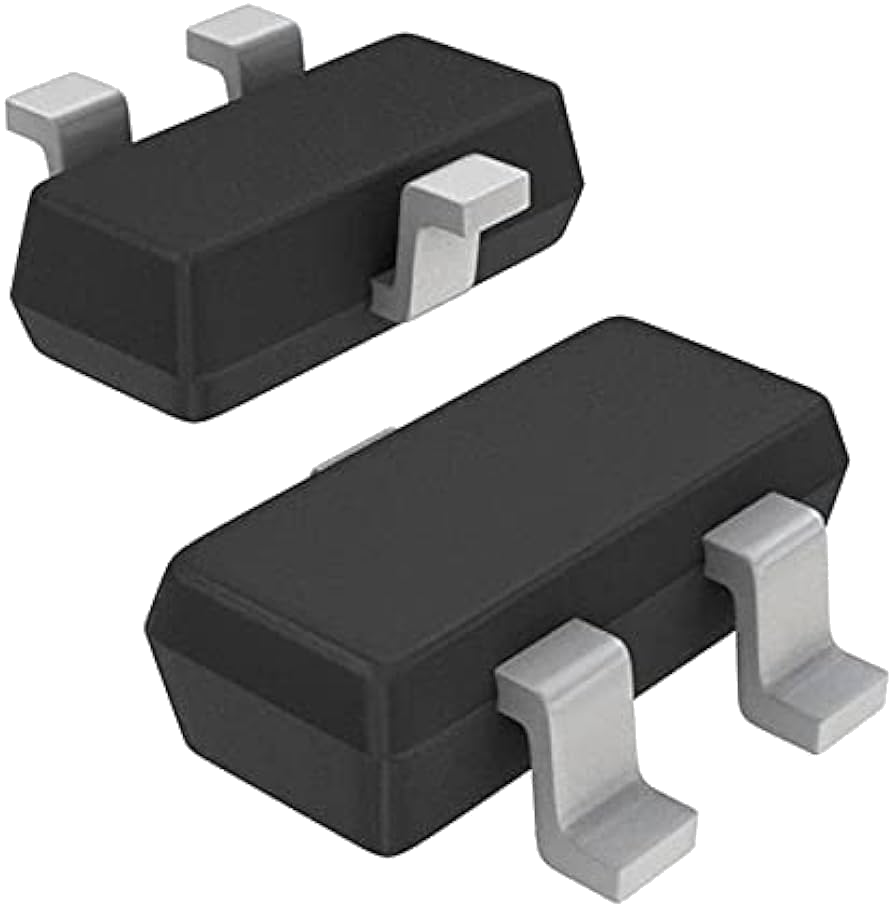

• Package Type: SOT-23
• Dimensions: The SOT-23 package is compact, with dimensions that typically measure around 2.9mm x 1.3mm x 1.1mm, making it suitable for space-constrained applications.

Applications:

The BAT54SDW-7-F is commonly used in:

• RF applications (e.g., mixers, detectors)
• Power management circuits
• Signal clamping and protection
• Rectification in low-voltage power supplies
• General-purpose switching applications

Conclusion:

The BAT54SDW-7-F from Diodes Incorporated is a versatile and efficient dual Schottky diode that offers low forward voltage drop, high-speed switching capabilities, and low leakage current. Its compact SOT-23 package makes it an excellent choice for modern electronic designs where space and efficiency are critical.
