LM4041DIDBZT PMIC - Источник опорного напряжения от Texas Instruments

Обзор продукта

Обзор

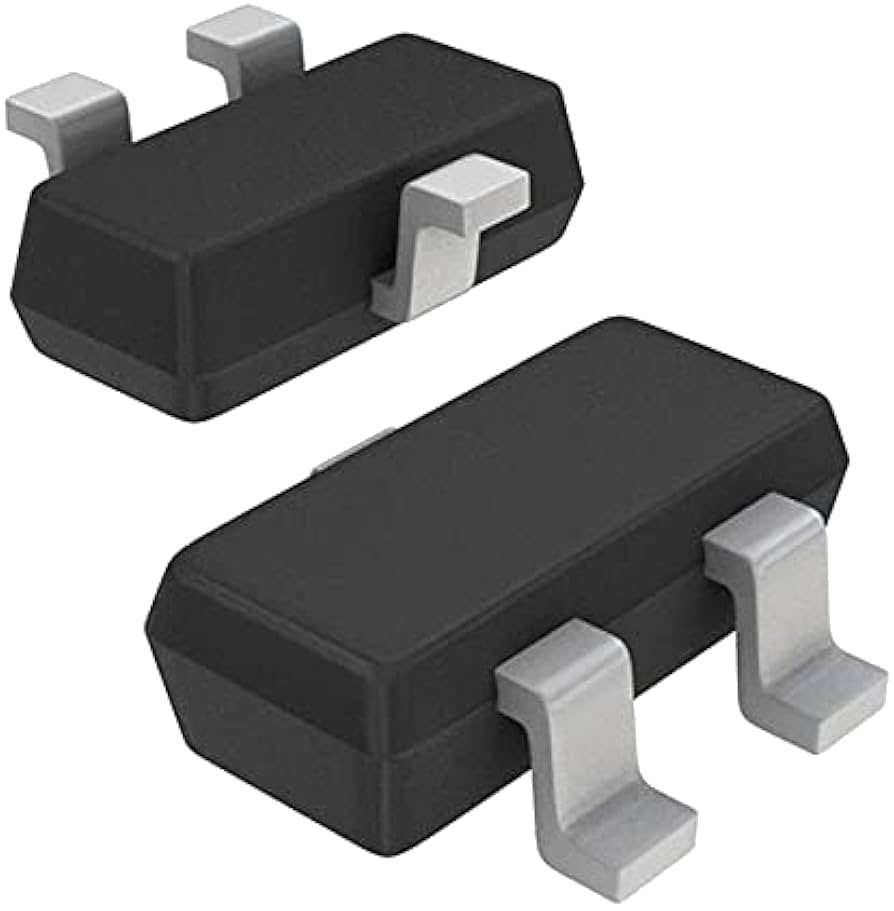

General Description Ideal for space critical applications, the LM4040 and LM4041 precision voltage references are available in the subminiature (3mm × 1.3mm) SOT-23 surface-mount package. The LM4040 is the available in fixed reverse breakdown voltages of 2.500V, 4.096V and 5.000V. The LM4041 is available with a fixed 1.225V or an adjustable reverse breakdown voltage. The minimum operating current ranges from 60µA for the LM4041-1.2 to 74µA for the LM4040-5.0. LM4040 versions have a maximum operating current of 15mA. LM4041 versions have a maximum operating current of 12mA. The LM4040 and LM4041 have bandgap reference temperature drift curvature correction and low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents. Data sheets and support documentation can be found on Micrel’s web site at www.micrel.com. Features • Small SOT-23 package • No output capacitor required • Tolerates capacitive loads • Fixed reverse breakdown voltages of 1.225, 2.500V, 4.096V and 5.000V • Adjustable reverse breakdown version • Contact Micrel for parts with extended temperature range.Key Specifications • Output voltage tolerance .............................±0.1% (max) • Low output noise (10Hz to 100Hz) LM4040................................................. 35µVRMS (typ) LM4041................................................. 20µVRMS (typ) • Wide operating current range LM4040..................................................60µA to 15mA LM4041..................................................60µA to 12mA • Industrial temperature range .................. –40°C to +85°C • Low temperature coefficient ................ 100ppm/°C (max)Applications • Battery-powered equipment • Data acquisition systems • Instrumentation • Process control • Energy management • Product testing • Automotive electronics • Precision audio components
